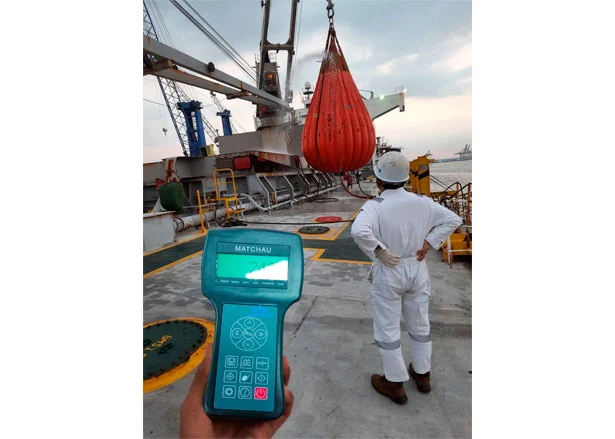

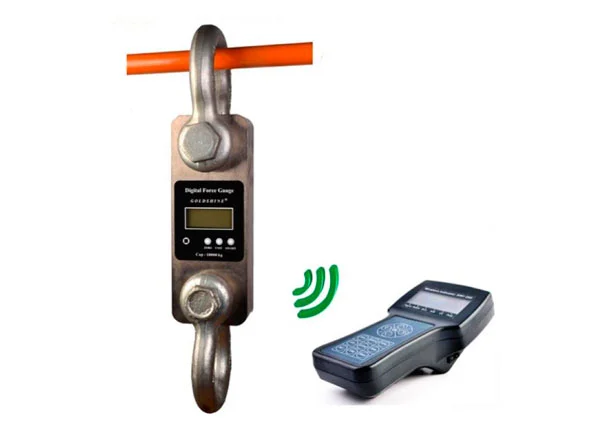

Wireless dynamometer also called wireless dyna-link, one set of load cell consists of wireless dynamometer 1pc and shackles 2pcs and wireless handheld indicator 1pc, and you can choose what you need and no need, that's not a problem.
Wireless Connectivity: The main feature of a wireless dynamometer is its ability to transmit data wirelessly to a remote receiver or display unit, eliminating the need for physical cables.
Load Measurement: Wireless dynamometers accurately measure the force, tension, or weight being applied to the device. This information helps users monitor and control loads in various applications.
Accuracy: High-quality wireless dynamometers are designed to provide precise and reliable measurements, ensuring accurate load monitoring.
Model | Capacity (T) | Division Value (kg) | A (mm) | B (mm) | C (mm) | D (mm) | φ (mm) | H (mm) | Material |
DY1-1t | 1 | 0.5 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminium Alloy |
DY1-2t | 2 | 1 | 245 | 116 | 37 | 190 | 43 | 335 | |
DY1-3t | 3 | 1 | 260 | 123 | 37 | 195 | 51 | 365 | |
DY1-5t | 5 | 2 | 285 | 123 | 57 | 210 | 58 | 405 | Alloy Steel Stainless Steel |
DY1-10t | 10 | 5 | 320 | 120 | 57 | 230 | 92 | 535 | |
DY1-20t | 20 | 10 | 420 | 128 | 74 | 260 | 127 | 660 | |
DY1-30t | 30 | 10 | 420 | 138 | 82 | 280 | 146 | 740 | |
DY1-50t | 50 | 20 | 465 | 150 | 104 | 305 | 184 | 930 | |
DY1-100t | 100 | 50 | 570 | 190 | 132 | 366 | 229 | 1230 | |
DY1-200t | 200 | 100 | 725 | 265 | 183 | 440 | 280 | 1380 | |
DY1-250t | 250 | 100 | 800 | 300 | 200 | 500 | 305 | 1880 |
